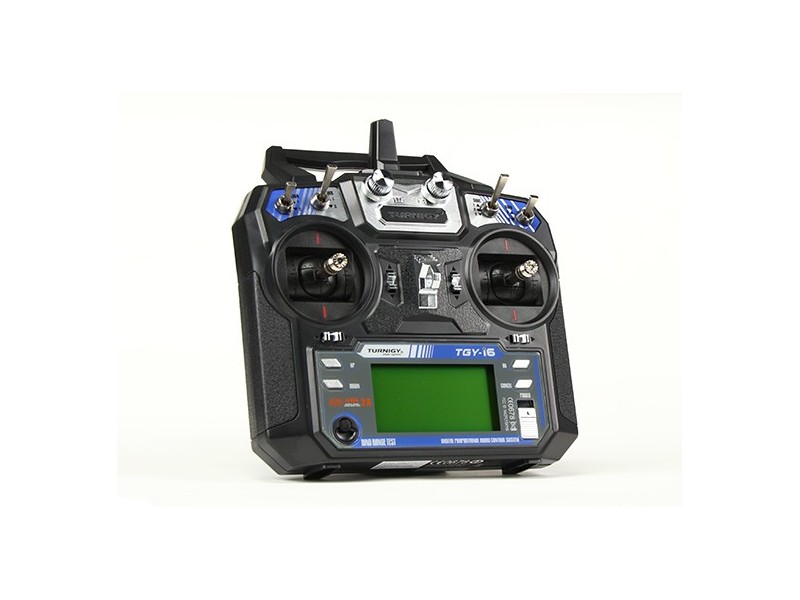

Turnigy TGY-i6 (FLYSKY FS-i6) AFHDS 2.4GHz Предавател (Mode 2) и 6CH Приемник с телеметрия

9114000020-2

195,00 лв.
с ДДС

Turnigy TGY-i6 (FLYSKY FS-i6) AFHDS 2.4GHz Transmitter and 6CH Receiver (Mode 2)

Количество
нова доставка

Turnigy TGY-i6 (FLYSKY FS-i6) 2.4GHz Предавател (Mode 2) и 6CH Приемник с телеметрия

The Turnigy TGY-i6 (FLYSKY FS-i6) is a great entry-level 6-channel telemetry 2.4GHz computer transmitter that uses solid and reliable Automatic Frequency Hopping Digital System (AFHDS) spread spectrum technology. The Turnigy TGY-i6 has both a nice quality look and feel, while the programming is simple to use. The TGY-i6 also has an impressive list of features and includes a TGY-iA6 6-channel receiver. Suitable for both model helicopters and airplanes, the Turnigy TGY-i6 is a superb budget radio system for both new and experienced pilots!

Features:
• Entry level 6 channel 2.4GHz radio with telemetry capability
• Dual Rate/Trims/Gear/Flap/Gyro Gain Adjust/Flight Mode/Throttle Hold/Hover Pitch Switches
• Easy to use Programming & Navigation Buttons
• Supports Heli/Standard Wing/Elevon/V-Tail
• 20 Model Memory
• 8 Character Model Name
• Trainer and charging ports
• Backlit LCD Screen displays real-time transmitter and receiver voltage
• 4 Stick Mode Selectable
• Optional telemetry receivers and sensors available separately

• Reliable, interference free 2.4GHz AFHDS 2A signal operation
• iBUS, SBUS, PPM and PWM
• Compact, lightweight design
• Dual antennas for reliable, interference-free operation
• Connection ports for use with optional telemetry sensors

Basic Programm Functions:
Dual Rates
Sub Trim
Travel Adjust
Channel Reverse
Swash Mix
Gyro Sensitivity
Throttle Curve
Monitor
Pitch Curve
Throttle Hold
Model Name

Turnigy TGY-i6 (FLYSKY FS-i6) Transmitter Specs:
Frequency: 2.4ghz ISM Frequency Range
Modulation: GFSK
Spread Spectrum Mode: AFHDS 2A and AFHDS
Band: 142
Number of Frequency Channels: 20
Output Power: <=20dbm
Working Current: <=100mA
Working Voltage: 1.5v x 4 AA
Dimensions: 174x89x190mm
Weight: 392g
Resolution: 1024 bit
Stick Mode: Mode 2 (Throttle Left)

Turnigy iA6B Receiver Specs:
Channels: 6
Frequency: 2.4GHz ISM Frequency Range
Receive sensitivity: -105DBm
Frequency range: 2.4055-2.475 GHz
Band width: 500kHz
Band quantity: 140
Antenna: C130-RF-014
Transmitting power: <20dBm
Code type: GFSK
System: AFHDS2A
Sensitivity: 1024
Power: 4.0~6.5V DC
Distance: >500m
Function: Two-way communication, Multifunction extension
Output data: PPM, i.BUS, S.BUS, PWM
Data acquisition: yes (FUTABA)
PPM output: yes (CH1)
Channel data: Center position: 1500±10us, range: 1000~2000±10us
Wireless update: Yes
Color: Black
Certification: CE, FCC, RCM

Required:
4 x AA Type Battery For Operation

9114000020-2

Специфични препратки

Нови

Изтегляне

FS-i6-manual

FS-i6-manual

Изтегляне (6.92MB)
