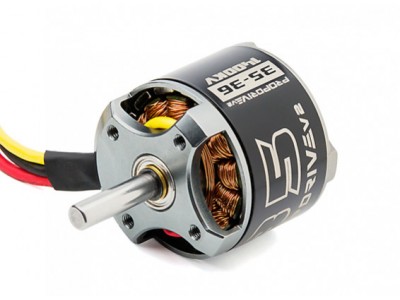

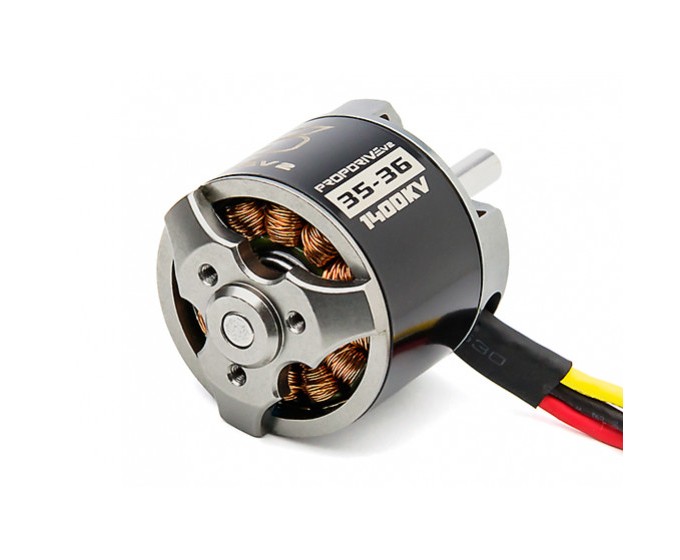

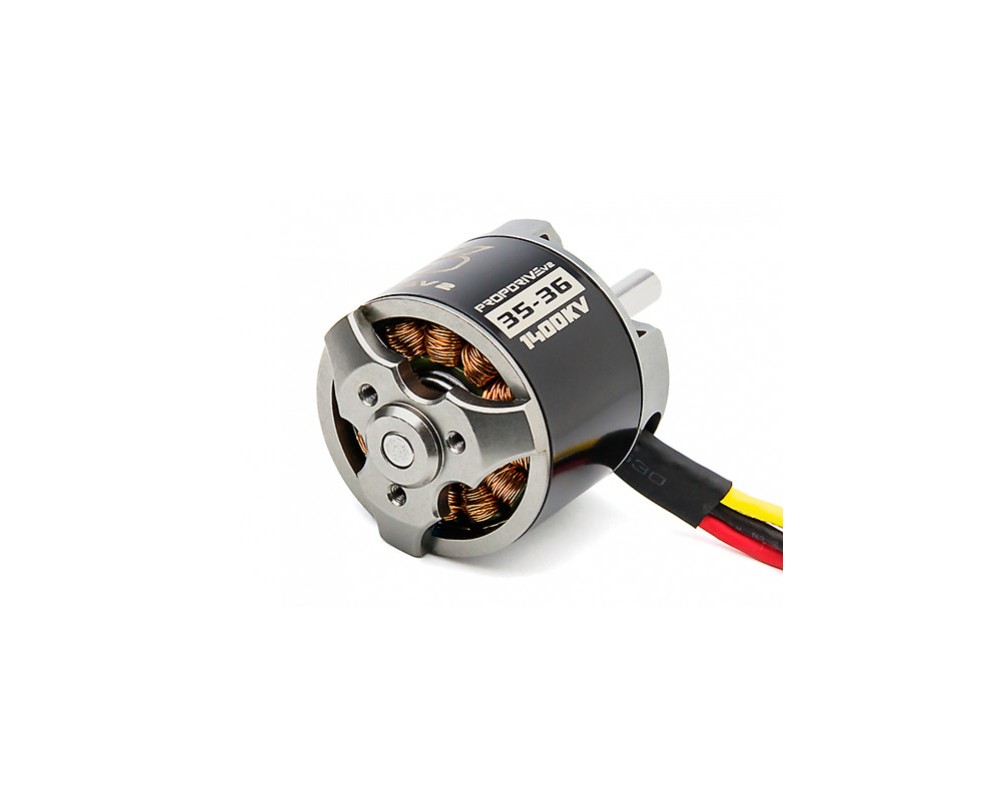

PROPDRIVE v2 3536 1400KV Brushless Outrunner Motor
PROPDRIVE v2 3536 1400KV Brushless Outrunner Motor
Specs:
Model: PROPDRIVE v2 3536 1400KV
KV: 1400KV
Max current: 50A
ESC: 50~70A
Cell count: 3s~4s LiPo
Bolt holes: 25mm
Bolt thread: M3
Shaft: 5mm
Connectors: 3.5mm Bullet
Weight: 121g
Performance Data (3S):
8x6: 315W, 30A, 1470g static thrust
9x4.5: 358W, 35A, 1511g static thrust
10x5: 499W, 50A, 2000g static thrust
Performance Data (4S):
7x4: 335W, 24A, 1267g static thrust
7x5: 395W, 28A, 1534g static thrust
8x4.5: 534W, 39A, 1902g static thrust
