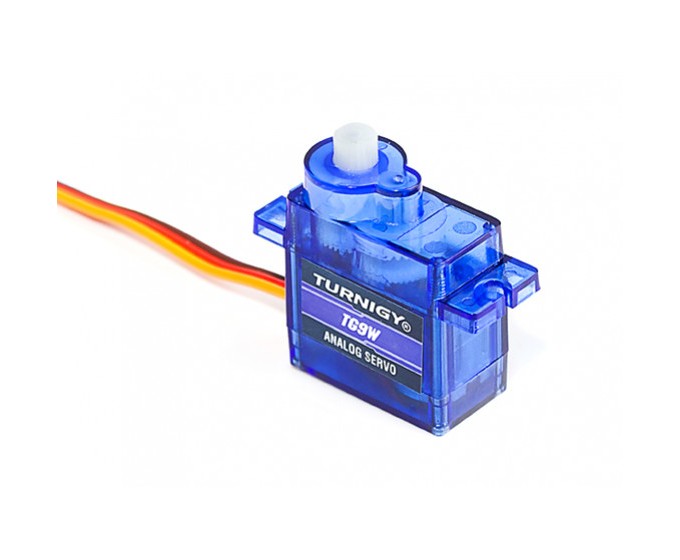

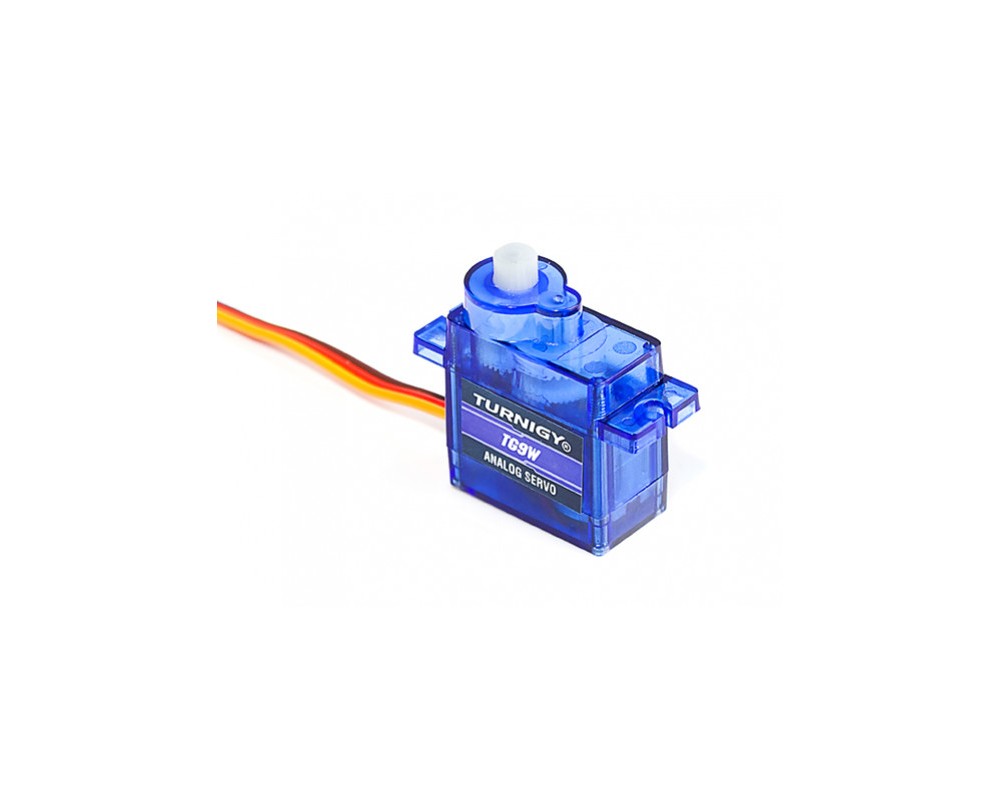

Turnigy™ TG9W Waterproof Analog Micro Servo 1.8kg/0.09sec/10.5g

TG9W
4.50 €

TG9W Waterproof Analog Micro Servo 1.8kg/0.09sec/10.5g

Quantity
on Stock --> 3 pcs

TG9W Waterproof Analog Micro Servo 1.8kg/0.09sec/10.5g

Specs:
Type: Turnigy™ TG9W Waterproof Analog Micro Servo
Input Voltage: 4.8~6V
Torque: 1.6kg.cm @ 4.8V, 1.8kg.cm @ 6V
Speed: 0.10sec/60° @ 4.8V, 0.09sec/60° @ 6V
No Load Current: 190mA @ 4.8V, 230mA @ 6V
Stalled Current: 550mA @ 4.8V, 700mA @ 6V
Idle Current: 20mA @ 4.8~6V
Max deflection: 195° ± 1°
Neutral Position: 1500µsec
Dead band Width: 6µsec
Pulse Width Range: 900~2100µsec
Gear Train: Nylon
Output Spline: 21 teeth
Motor: Brushed
Ball bearing: No
Waterproof: Yes
Dimensions: 22.4x12.5x22.8mm
Weight: 10.5g
Servo Lead length: 335mm
Servo Connector: JR/Futaba

TG9W
