TD-8135MG - Водозащитено дигитално корелес серво 35kg/180градуса

TD-8135MG

58,00 лв.
с ДДС
TD-8135MG - Waterproof 35kg 180 Degree Large Torque Digital Coreless Servo
Количество
изчерпан

TD-8135MG - Водозащитено дигитално корелес серво 35kg/180градуса

Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type: 5 Metal
4. Limit angle: 360°
5. Bearing: 2BB
6. Horn gear spline: 25T     Diameter :5.9mm
7. Horn type: Plastic, POM
8. Case: Engineering plastics(PBT)+Aluminum alloy
9. Connector wire: 320mm±5mm
10. Motor: Carbon brush moto

Electrical Specification:
1. Operat voltage: 4.8V - 7.2V
2. No load speed: 0.32sec/60° - 0.22sec/60°
3. Runnig current: 140mA - 200mA
4. Peak stall torque: 32.7kg.cm - 35.2kg.cm
5. Stall current: 2600mA±10% - 3400mA±10%
6. Working voltage range: 4.8 - 7.2V

Control Specification
1. Command signal: Pulse width modification
2. Amplifier type: Digital controlle
3. Pulse width range: 500~2500usec
4.Neutral position: 1500usec
5. Running degree: 180°±3°(when 500~2500usec
6. Dead band width: 5 usec
7. Rotating direction: Counterclockwise (when 1000~2000usec)
TD-8135MG

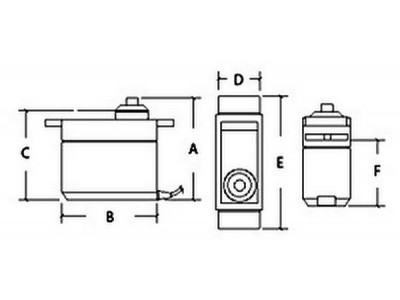

Информационен лист

E (mm)
55
F (mm)
29
Скорост
0.22sec
Тегло
56g
Въртящ момент
35kg
