PROPDRIVE v2 5060 270KV Brushless Outrunner Motor
PROPDRIVE v2 motors are designed to perform right out of the box with tight windings, smooth bearings, correctly rated magnets, precision cut stator, and balanced rotors.
We design and build the PROPDRIVE v2 motors in-house, allowing us to control every aspect of production. We control the entire production line from material sourcing to machining, balancing, and final assembly. PROPDRIVE motors can be trusted to provide years of reliable service at a price every modeler can afford.
We have included a collet-style adapter, as well as a bolt-on prop adapter.
Specs:
Model: PROPDRIVE v2 5060 270KV
KV: 270 KV
Max current: 90A
ESC: 100A
Cell count: 6s~8s LiPo
Pole Count: 14
Bolt holes: 25mm
Bolt thread: M4
Shaft: 6mm
Connectors: 4mm Bullet
Weight: 438g
Performance Data (6S):
22x8: 1216W, 58A, 5473g static thrust
22x10: 1407W, 68A, 6413g static thrust
24x8: 1520W, 74A, 6400g static thrust
Performance Data (8S):
17x8: 1218W, 43A, 5183g static thrust
18x8: 1448W, 52A, 5895g static thrust
19x8: 1692W, 60A, 6612g static thrust
Turnigy TrackStar Turbo and Waterproof ESC Programming Box
Tx Extra battery cover for LiPo Pack - Fs-i6, Futaba
ZMR 30A Bidirectional Brushless ESC For Remote Control
Corona DS538MG Digital Metal Gear Servo 8kg / 0.12sec / 58g
IMAX B6 80W Multi-function Professional Intelligent 1-6 Cells
Turnigy Nano-Tech 1300mAh 2S1P 20~40C Lipo Receiver Battery Pack w/JST & JR Type Connectors
Tx Extra battery cover for LiPo Pack - Futaba, Turnigy, Hobby King, FlySky, Hobby King ....
ZIPPY 6000mah 2S2P 35C Hardcase PackC
iMax B3 Pro 2S 3S Lipo Battery Balance Compact Charger
RC TRANSMITTER Model Orange Neck STRAP Lanyard for FUTABA
Corona CS-239MG Slim-Wing Analog Servo 4.6kg / 0.14sec / 22g
110mm CNC Alloy Servo Arms Horns for Hitec 24 Teeth 24T
PROPDRIVE v2 2836 1000KV Brushless Outrunner Motor
Turnigy nano-tech 3000mAh 2S1P 20~40C LiFePo4 Receiver Pack
100A 3S Waterproof Brushed ESC with Fan 5V 3A BEC
Turnigy nano-tech 850mah 2S 25~40C Lipo Pack w/ JST
TG9W Waterproof Analog Micro Servo 1.8kg/0.09sec/10.5g
FlySky (Hobby King) GT-2 2.4Ghz Receiver 3Ch
Corona DS238MG Digital Metal Gear Servo 4.6kg / 0.14sec / 22g
GXservo GX3212mg 12kg Digital Servo for 1/8 1/10 1/12 Racing Cars Tamiya Cars and Planes
Turnigy nano-tech 2100mAh 3S1P 20C LiFePo4 Transmitter Pack
Aluminum M3 Link Rod End Ball Joint CW CCW for RC Car Crawler Buggy
Turnigy D3548/6 790KV Brushless Outrunner Motor
60A 3S Waterproof Brushed ESC with Fan 5V 3A BEC
FLYSKY FS-iA6B V2 Receiver 6CH 2.4G AFHDS 2A Telemetry Receiver w/SBUS
Turnigy Rapid 5000mAh 3S (11.1V) 100C LiPo Battery Pack w/XT90
JX PDI-6221MG 20KG Large Torque Digital Standard Servo For RC Model
FLYSKY FS-i6 AFHDS 2.4GHz Transmitter and 6CH Receiver (Mode 2)
Turnigy T6A-V2 AFHDS 2.4GHz 6Ch Transmitter w/Receiver V2 (Mode 2)
775 12V-24V DC 6000-12000RPM Motor Ball Bearing Large Torque High Power
PROPDRIVE v2 3542 1000KV Brushless Outrunner Motor

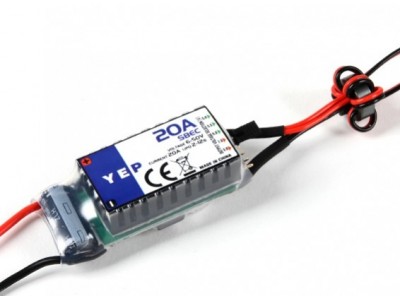

YEP 20A HV (2~12S) SBEC w/Selectable Voltage Output
